• 브래킷 유형: 다른
  • 스크린 곡률: NONE
  • 높은 동적 범위: NONE
  • 수직 시야각: 160°
  • 스크린 유형: LED
  • 출시일: 2017
  • 수평 시야각: 160°
  • 명암비: 850:1
  • 스피커 내장: 그렇습니다
  • 흑백 응답 시간: 12 ms
  • 특징: USB 포트,접촉 스크린
  • 신청: 2 바탕 화면
  • 응답 시간: 12ms
  • 패널 유형: TFT
  • 제품 상태: 재고 있음
  • 대조 비율: 800:1
  • 인터페이스 유형: VGA
  • 밝기: 300cd/m
  • 디스플레이 비율: 16:10
  • 화면 크기: 12\
  • 해상도: 1280 x 800
  • 브랜드 이름: NoEnName_Null
  • 원산지: 중국
  • Product name: 12 inch widescreen panel mount touch monitor
  • Plug: AU, US, UK, EU plug optional
  • Interface: VGA/HDMI/USB
  • Active Area/Display Area: 260.3*162.4mm
  • Monitor size: 312.3*215.9mm
  • Working Temperature: -10℃--+60℃
  • Storage Temperature: -20℃--+70℃
  • Color: Black
  • VESA: 75x75mm
  • Service: OEM/ODM are all available


옵션정보

[(193)Without touch]


[(366)Resistive Touch]


[(173)Capacitive Touch]



Product Details:





The specifications of 12 Inch 16:10 Embedded Industrial Monitor?


Model Number

? Q1216/QC1216

Screen Ratio

? 16:10

Resolution

? 1280*800

Brightness?

? 300 cd/m²?

? Contrast

? 800:1

Color Range

? 16.7M

Response Time

? 5 (Typ.)(Tr+Td) ms

Viewing Angle

? 80/80/80/80 (Typ.)(CR≥10)

Signal Interface?

? VGA/HDMI

Touch functions
(optional)

Touch Screen?

? No touch or Resistive touch screen optional

Touch Interface?

? USB

Touch points

? Capacitive touch support 10 points touch?

Product Features

Active Area/Display Area

? 260.3*162.4mm

Monitor size

? 312.3*215.9mm

Working Temperature

? -10℃--+50℃

Storage Temperature

? -15℃--+60℃

Color?

? Black

Net weight

? 3KG(without touch screen) 3.5KG(with touch screen)

Advantages

Cold rolled sheet metal material, strong casing, shockproof, anti-interference;
Power-on boot function, timing boot function;
Support wall-mounted, desktop, embedded installation;
Using industrial-grade high-brightness display, longer life;
Industrial design natural heat dissipation;
Touch screen, stable performance, accurate positioning without drift, high

sensitivity.

Accessories

Power cable, VGA/HDMI cable optional, USB cabel(with touch functions) , Manual.?

Service

After-sales service

1 year warranty

Personalized customization

Customizable products, appearance, wide temperature

screen, high brightness screen, high resolution, wide

voltage, etc. OEM/ODM are all available

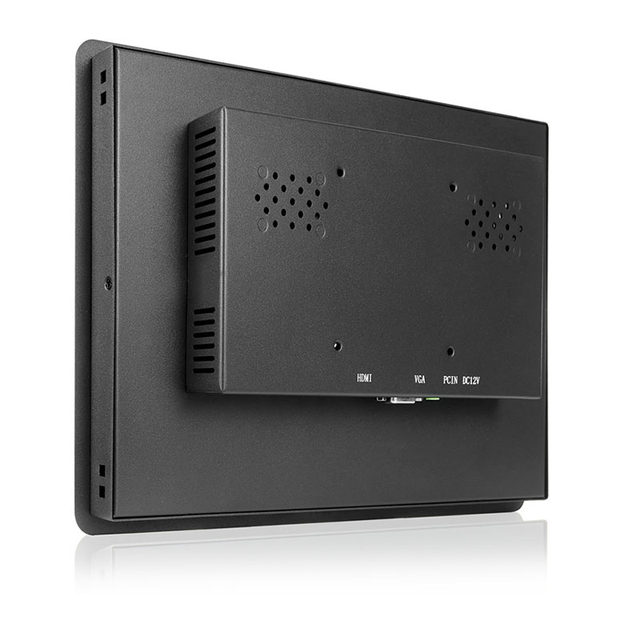

Product Pictures:




Product Dimensions:


Applications:





Package :





Company Info. :


We are the manufacture for Lcd Panels, Control Card, Touch Screen, Touch Monitor and Touch All-In-One Computers, Game Touch Monitors. With the powerful technology advantage and rigorous quality control process. The products have passed CE, ROHS, FCC certifications.


Quality is our life.


We offer high quality products and the best after-sales services to clients. We adhere to the principle of "credibility first and service oriented". We have set up a scientific research department, a management department and a production department.




Contact Info. :
