Screen features:
1. Physical resolution 320 x 480, electric resistance touch.
2. Up to 125MHz SPI signal input is supported, which is stable without flicker.
3. The refresh rate of raspberry pie is about 50Hz, and there is no pressure to play video and games.
4. It supports FBCP software drive, dual screen display, and software resolution can be adjusted for zooming.

It is the same size as raspberry pie, perfectly compatible, and can be directly inserted into any version of for raspberry pie (for raspberry pie ZeroW, A, A+, B, B+, 2B, 3B, 3B+, 4B)
Support for Raspbian/Ubuntu/Kali system, and provide drivers and images.
Specifications:

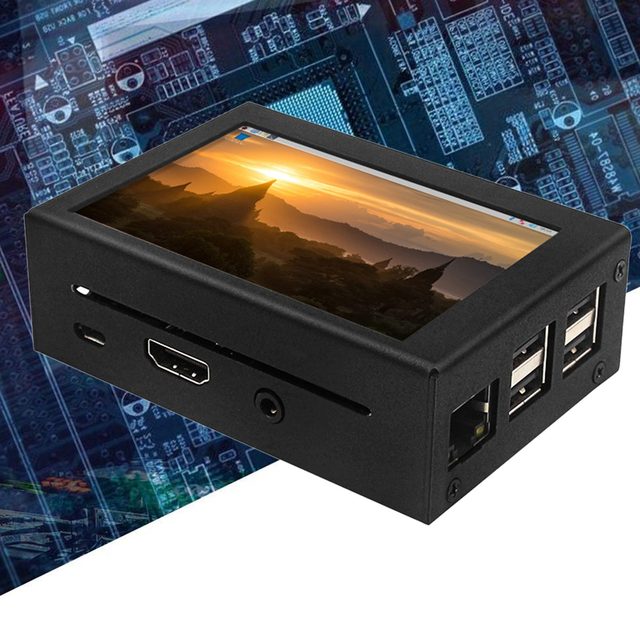

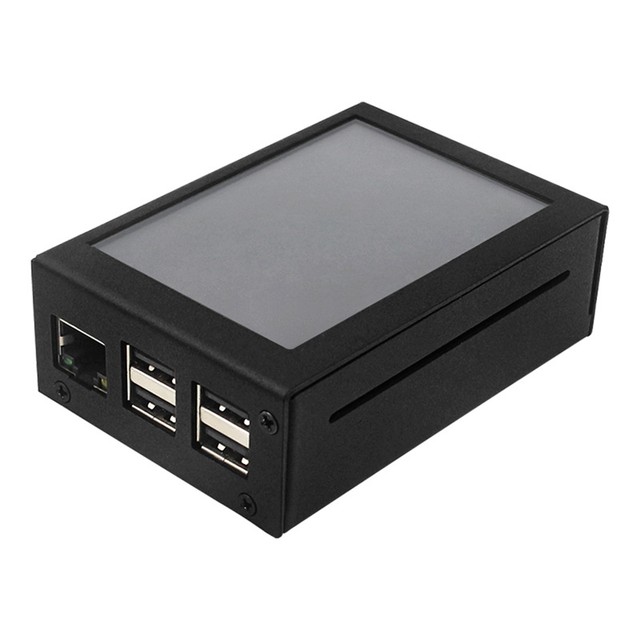

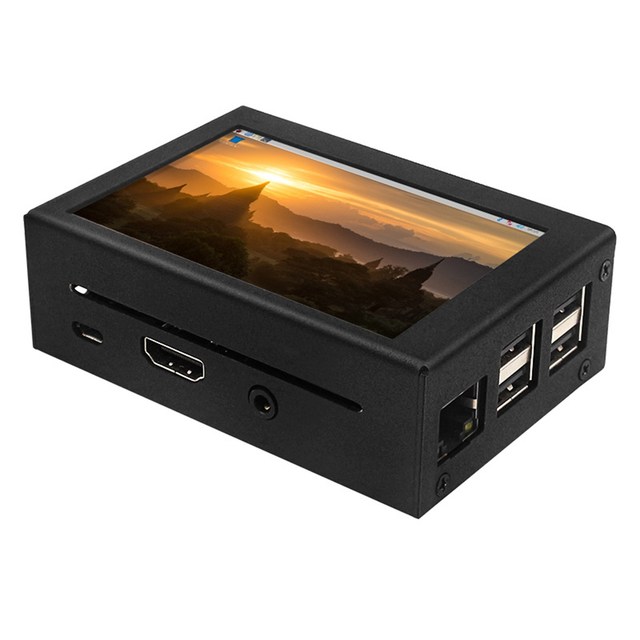

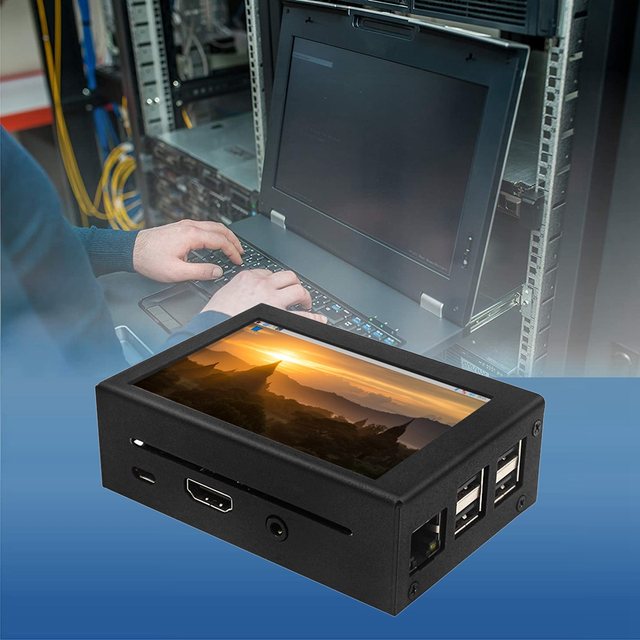

Product name: 3.5 inch touch screen+metal shell
Material: PCB+metal
Color:Black
Screen size: 3.5 inches
LCD type: TFT
Module interface: SPI (up to 125MHz SPI input is supported)
Resolution: 320 x 480 (pixels)
Refresh rate: 50Hz
Touch screen controller: XPT2046
LCD drive: ICILI9486
Backlight: LED
Power consumption: 0.16A/5V
Scope of application: for Raspberry Pi 3B+/3B
Working temperature: - 20 ¡É~60 ¡É
Module PCB size: 85.42 x 55.60 (mm)

Package Contents:
1 x 3.5 inch touch screen
1 x metal shell
1 x Stylus

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
