SP632E Smart LED Controller Bluetooth APP Dimming and RF 2.4G Remote Control

DESCRIPTION

Product Feature

1. High performance, low power main control 5-24V (adaptive voltage)
2. Support dynamic and music effects
3. Support mobile app, 2.4G touch remote control, 2.4G touch control, 86 box and other control methods
4. Support timing switch
5. Music mode, with lights following the rhythm of the music

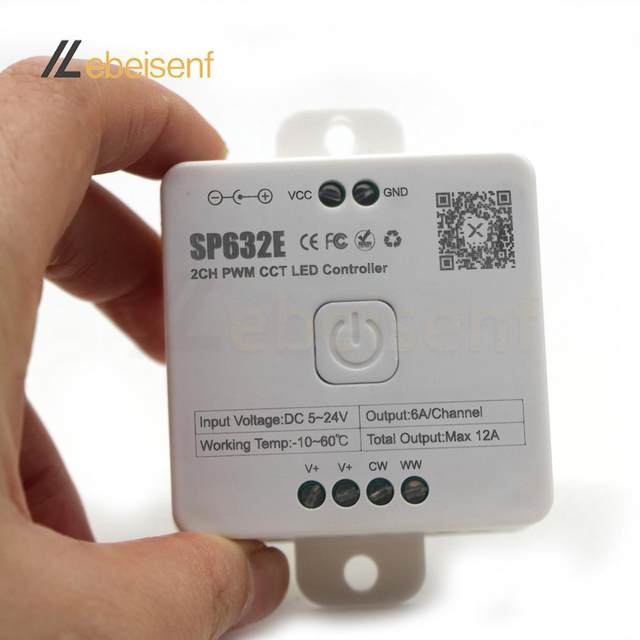

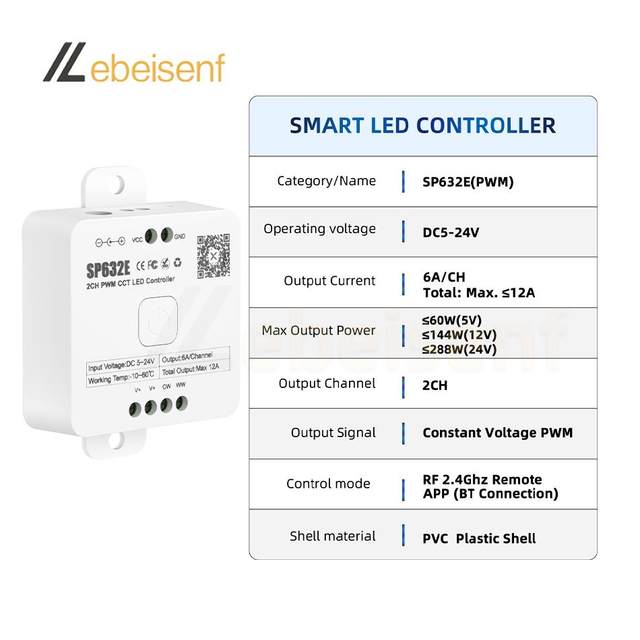

Smart LED Controller

Operating voltage: DC (5-24V)
Connection method: Common Anode
Output channel: 2CH (Dual Color)
Output current: Max ¡Â 6A/CH; Total Max: ¡Â 12A
Output power: 5V<60W; 12V<144W; 24V<288W
Static power consumption:<1W
Output signal: constant voltage @ PWM
Control method: (Bluetooth) mobile app; RF 2.4Ghz remote control (purchased separately)
Size: L56 * W78 * H20mm
Material: Plastic shell

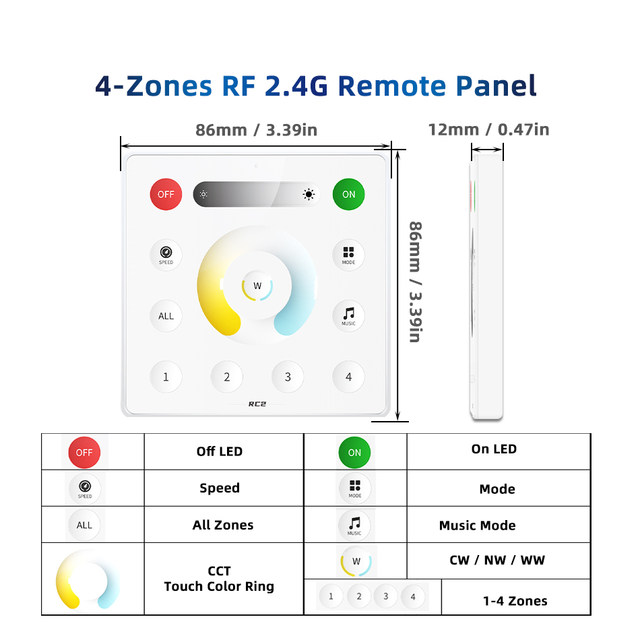

RF 2.4G Remote Control

¡Ü Adopting RF 2.4GHz wireless remote control technology, it has the characteristics of low transmission power, low power consumption, long transmission distance, strong anti-interference ability, and fast transmission speed;
¡Ü Adopting capacitive touch IC, high sensitivity, good consistency, and strong reliability;
¡Ü Supports one-to-many control, where one remote control can control multiple controllers;
¡Ü Supports multi to one control, with each controller capable of binding up to 5 remote controls;
¡Ü Supports unified control and 4 partition controls.
¡Ü Control distance visual range<30M
¡Ü Due to transportation reasons, the product is not equipped with (CR2032 button battery). Please purchase separately

Voltage instructions

Please choose the power supply of the same voltage according to the voltage of LED lights. Not the controller
