상품정보
- 브랜드 이름: 없음
- 힌트 관련 화학: 없음
- 원산지: 중국
- 전압: 12V
- 품목 유형: 데이 라이트
- 루멘: 100LM
- 인터페이스 유형: 아무도
- 모델명: Crystal DRL AM-WY/BLUE
- 와트: 8W/PC
- 제품 중량: 0.3KG
- Input: DC9-16V
- Output: DC9V
- Length: 60CM
- DRL Section: 19section/PC; 38section/set
- White-Yellow Power: 10W/PC
- Upgrade (Blue Light): 8W/PC
- Notice 1: DRL can't be installed on 24V car
- Notice 2: Can't be installed outside lights
Model Name : 60CM LED DRL Strips
Length : 60CM
Voltage: DC9V-DC12V (Only can used on 12V Car Headlight)
Light Model : White-Yellow/Upgrade Blue
Feature : Can bend , Can cut, Can't fold
Product Include
2pcs LED DRL Strips
Some instllation accessories
Notice: We will pack this DRL as below box, If you don't like, pls don't buy.
Thank you!
Wire Connection
There have 4 wires , Red , Black , Yellow , White
1. Red connect ACC " + "
2. Black connect " - "
3. Yellow connect turn light " + "
(Right DRL connect right turn light , Left DRL connect left turn light )
4. White connect " + " , it close function , which bottom you want contol this fundction , which " + " connect

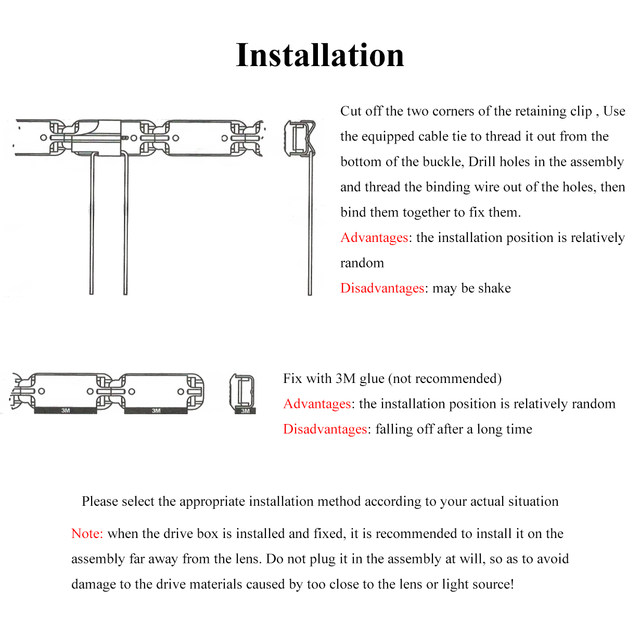

Installation
Please select the appropriate installation method according to your actual situation
Product Show
